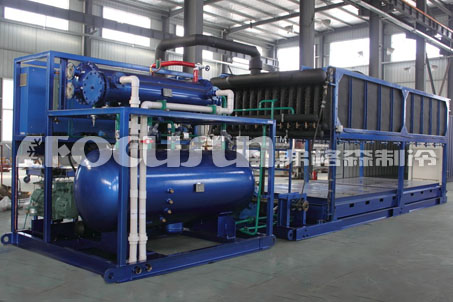

Block ice machine FIB-100D

Model: FIB-100D

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 10000
Cooling way   Water cooling
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 39.83
Installment power Kw 50
Cooling tower fan Kw 1.1
Cooling water pump Kw 2.2
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 86.6
Operating power Kw 35.98
Compressor COP/EER Kw/kw 2.41
Horse power Hp 25×2sets
Working time Ice making time h 7.5
Ice falling off time h 0.5
Dimension Weight of block ice Kg/block 50
Size of block ice (L×W×H)(mm) 480×160×700
Size of unit modular (L×W×H)(mm) 1800×1000×1450
Number of evaporator   2 PC
Size of evaporator modular (L×W×H)(mm) 4800×1000×2200
Size of cooling tower (O.D.×H)(mm) Ф2000×2410
Size of water feeding pipe of cooling tower   3/4"
Size of cooling water pipes   2-1/2"
Size of water feeding pipe   1-1/4"
Operating weight Unit Kg 1680
Evaporator Kg 2860
Cooling tower Kg 670
Water supply pressure requirement Bar 1
