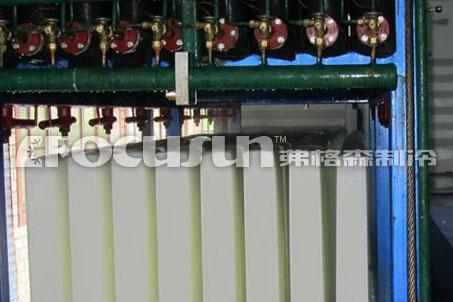

Block ice machine FIB-50D

Model: FIB-50D

Subject Unit Technical parameter
Power supply Voltage/Phase/Frequency 380V/3P/50Hz
Refrigerant   R22 or R404A
Capacity Kg/day 5000
Cooling way   Water cooling
Temperature Ambient temperature 35
Waterinlet temperature 20
Operating power Total running power Kw 20.9
Installment power Kw 25
Cooling tower fan Kw 0.55
Cooling water pump Kw 1.5
Operating power of cold water pump Kw 0.55
Compressor Manufacturer   Bitzer
Refrigeration capacity Kw 43.3
Operating power Kw 17.99
Compressor COP/EER Kw/kw 2.41
Horse power Hp 25
Working time Ice making time h 7.5
Ice falling off time h 0.5
Dimension Weight of block ice Kg/block 50
Size of block ice (L×W×H)(mm) 480×160×700
Size of unit modular (L×W×H)(mm) 1400×1000×1250
Number of evaporator   1 PC
Size of evaporator modular (L×W×H)(mm) 4800×1000×2200
Size of cooling tower (O.D×H)(mm) Ф1380×2170
Size of water feeding pipe of cooling tower   1/2"
Size of cooling water pipes   2"
Size of water feeding pipe   1-1/4"
Operating weight Unit Kg 960
Evaporator Kg 2860
Cooling tower Kg 460
Water supply pressure requirement Bar 1
